RAMPEX-PRO

Description

Dock Buffer for Loading Ramps – Built for High-Frequency Use

The RAMPEX-PRO dock buffer is engineered for loading ramps with high docking frequency. Its patented elastic lamella design enables softer docking, helping protect both truck buffers and the building structure from impact stress.

During loading and unloading, trailers move vertically as weight shifts. The RAMPEX-PRO is designed to follow vertical trailer movement up to ±50 mm, reducing unnecessary stress and helping prevent damage. If trailer movement exceeds this range, the trailer can continue to move smoothly along the steel front plate.

Compared to conventional rubber dock buffers, the patented lamella construction between steel plates offers a significantly longer service life and improved durability in demanding dock environments.

Manufactured in Germany under a quality management system according to ISO 9001, the RAMPEX-PRO combines durability, protection, and reliable performance for modern loading docks.



Technical Data

  • Dimensions (W × H × D): 240 × 500 × 150 mm

  • Hole spacing: 250 mm

  • Steel front plate thickness: 12 mm

  • Horizontal movement: 70 mm

  • Vertical movement: ±50 mm

  • Max. tightening torque (M20): 90 Nm

  • Max. impact force: < 110 kN

Product form

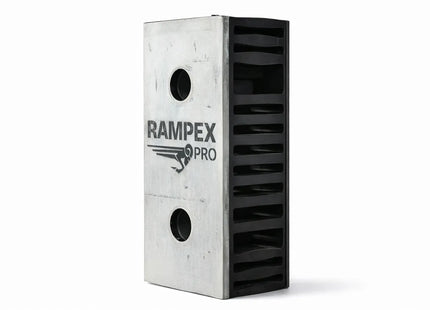

RAMPEX-PRO

  • Gentle impact: less shock force.
  • Protects ramps & trucks: less damage.
  • High-frequency ready: built for frequent docking.
  • ±50 mm compensation: follows trailer movement.
  • Patented unique lamella design: longer life cycle.
  • Made in Germany: built to high standards.

Dock Buffer for Loading Ramps – Built for High-Frequency Use The RAMPEX-PRO dock buffer is engineered for loading ramps with... Read more

€474,81 Incl. VAT

excl. VAT: €399,00

    Content to downloadContent to download

    Description

    Dock Buffer for Loading Ramps – Built for High-Frequency Use

    The RAMPEX-PRO dock buffer is engineered for loading ramps with high docking frequency. Its patented elastic lamella design enables softer docking, helping protect both truck buffers and the building structure from impact stress.

    During loading and unloading, trailers move vertically as weight shifts. The RAMPEX-PRO is designed to follow vertical trailer movement up to ±50 mm, reducing unnecessary stress and helping prevent damage. If trailer movement exceeds this range, the trailer can continue to move smoothly along the steel front plate.

    Compared to conventional rubber dock buffers, the patented lamella construction between steel plates offers a significantly longer service life and improved durability in demanding dock environments.

    Manufactured in Germany under a quality management system according to ISO 9001, the RAMPEX-PRO combines durability, protection, and reliable performance for modern loading docks.



    Technical Data

    • Dimensions (W × H × D): 240 × 500 × 150 mm

    • Hole spacing: 250 mm

    • Steel front plate thickness: 12 mm

    • Horizontal movement: 70 mm

    • Vertical movement: ±50 mm

    • Max. tightening torque (M20): 90 Nm

    • Max. impact force: < 110 kN
